Super Heavy duty battery

PVC Jacket
Mercury & cadmium free
Long lasting & economical battery
The scope of Application
Calculators,flashlights,clocks,radios,remote controls,toys….
*Not recommended for high drain devices,digical cameras,CD players,MP3 players,etc.

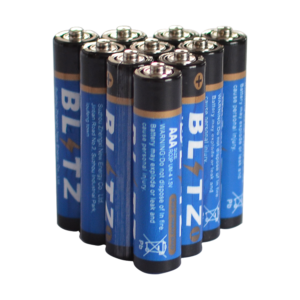

R03P/UM4/AAA SIZE Heavy duty battery

1.DESCRIPTION
IEC:R03
JIS:UM4
ANSI:AAA
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
DIAMETER:9.5-10.5mm
HEIGHT: 43.3-44.5mm
4.NOMINAL VOLTAGE: 1.5V
5.NOMINAL WEIGHT: 8.0-8.5g
6.Hg CONTENT: ≤1ppm
7.CAPACITANCE: 300mAh(3.9Ω, 24h/D, 20℃, 0.9V CUT OFF)
8.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
Duration:

3.9Ω 24h/d,E.V 0.9V	>36	MINUTES
5.1Ω 4min/h,8h/D E.V 0.9V	>80	MINUTES
3.6Ω 15s/m,24h/D E.V 0.9V	>170	TIMES
10Ω 1h/d,E.V 0.9V	>158	MINUTES
75Ω 4h/d E.V 0.9V	>25	HOURS

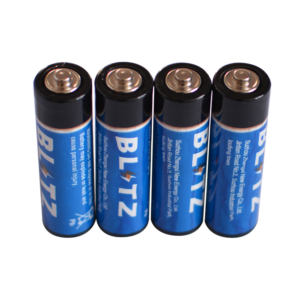

R6P/UM3/AA SIZE Heavy duty battery

1.DESCRIPTION
IEC:R6
JIS:UM3
ANSI:AA
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
DIAMETER:13.5-14.5mm
HEIGHT: 49.2-50.5mm
4.NOMINAL VOLTAGE: 1.5V
5.NOMINAL WEIGHT: 15.5-16g
6.Hg CONTENT: ≤1ppm
7.CAPACITANCE: 440mAh(3.9Ω, 24h/D, 20℃, 0.9V CUT OFF)
8.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
Duration:

3.9Ω 24h/d,E.V 0.9V	>102	MINUTES
3.9Ω 1h/d,E.V 0.9V	>140	MINUTES
1.8Ω 15s/m,24h/D E.V 0.9V	>170	TIMES
10Ω 1h/d,E.V 0.9V	>380	MINUTES
43Ω 4h/d E.V 0.9V	>31	HOURS

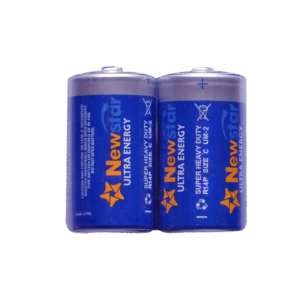

R14P/UM2/C SIZE Heavy duty battery

1.DESCRIPTION
IEC:R14
JIS:UM2
ANSI:C
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
DIAMETER:24.9-26.2mm
HEIGHT: 48.6-50.0mm
4.NOMINAL VOLTAGE: 1.5V
5.NOMINAL WEIGHT: 45-46.5g
6.Hg CONTENT: ≤1ppm
7.CAPACITANCE: 2100mAh(3.9Ω, 24h/D, 20℃, 0.9V CUT OFF)
8.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
Duration:

3.9Ω 24h/d,E.V 0.9V	>275	MINUTES
3.9Ω 4min/h,8h/d,E.V 0.9V	>275	TIMES
3.9Ω 1h/d,E.V 0.8V	>6.5	HOURS
6.8Ω 1h/d,E.V 0.9V	>11.5	HOURS
20Ω 4h/d E.V 0.9V	>37	HOURS

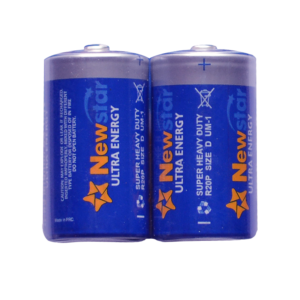

R20P/UM1/D SIZE Heavy duty battery

1.DESCRIPTION
IEC:R20
JIS:UM1
ANSI:D
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
DIAMETER:32.3-34.2mm
HEIGHT: 59.5-61.5mm
4.NOMINAL VOLTAGE: 1.5V
5.NOMINAL WEIGHT: 83-85g
6.Hg CONTENT: ≤1ppm
7.CAPACITANCE: 4800mAh(3.9Ω, 24h/D, 20℃, 0.9V CUT OFF)
8.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
Duration:

3.9Ω 24h/d,E.V 0.9V	>12.5	HOURS
2.2Ω 4min/h,8h/d,E.V 0.9V	>370	TIMES
3.9Ω 1h/d,E.V 0.9V	>15	HOURS
2.2Ω 1h/d,E.V 0.9V	>8.5	HOURS
10Ω 4h/d E.V 0.9V	>42	HOURS

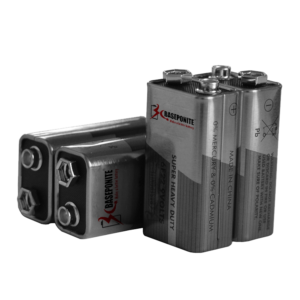

6F22/PP3/9V SIZE Heavy duty battery

1.DESCRIPTION
IEC:6F22
JIS:S-006P
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
LEIGHTH:24.5-26.5mm
WIDTH:15.5-17.5mm
HEIGHT: 46.5-48.5mm
4.NOMINAL VOLTAGE: 9.0V
5.NOMINAL WEIGHT: 37.0g
6.Hg CONTENT: ≤1ppm
7.CAPACITANCE: 250mAh(620Ω, 24h/D, 20℃, 5.4V CUT OFF)
8.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
9.EXPIRY PERIOD: 2 YEARS
Duration:

620Ω 24h/d,E.V 5.4V	>20.5	HOURS
620Ω 2h/d,E.V 5.4V	>28.5	HOURS
180Ω 30min/d,E.V 4.8V	>480	MINUTES
180Ω 24h/d,E.V 4.8V	>3.6	HOURS

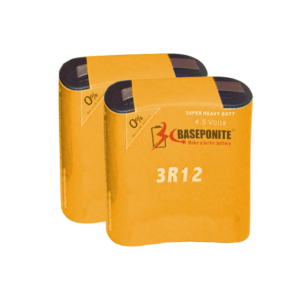

3R12 Heavy duty battery

1.DESCRIPTION
IEC:3R12
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
Please see the drawing
4.NOMINAL VOLTAGE: 4.5V
5.NOMINAL WEIGHT: 57.0g
6.Hg CONTENT: ≤1ppm
7.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
8.EXPIRY PERIOD: 2 YEARS

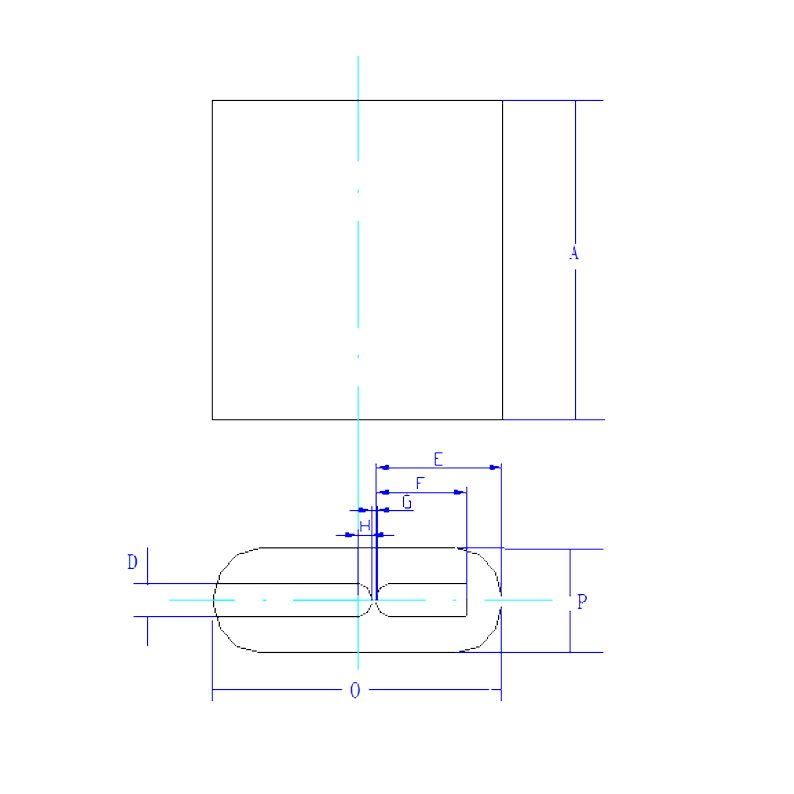

Drawing：Unit:mm

Item	Max	Min
A	67	63
D	7	6
E		23
F		16
G		1
H		3
P	22	20
O	62	60

Duration:

220Ω 4h/d,E.V 2.7V	105	HOURS
75Ω 4h/d,E.V 2.7V	25	HOURS
20Ω 1h/d,E.V 2.7V	6	HOURS
10Ω 10min/d,E.V 2.7V	210	MINUTES

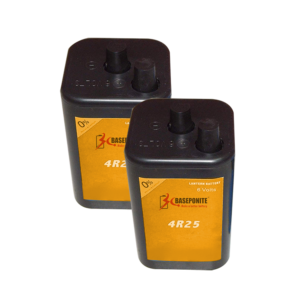

4R25 Heavy duty battery

1.DESCRIPTION
IEC:4R25
2.CHEMICAL SYSTEM:ZINC CHLORIDE-ZINC-MANGANESE DIOXIDE (MERCURY FREE)
3.DIMENSION:
Please see the drawing
4.NOMINAL VOLTAGE: 6.0V
5.Hg CONTENT: ≤1ppm
6.STORAGE CHARACTERISTICS
AFTER 6 MONTHS STORAGE, 90%CAPACITANCE OF FRESH CELLS
AFTER 12 MONTHS STORAGE, 80% CAPACITANCE OF FRESH CELLS
7.EXPIRY PERIOD: 2 YEARS

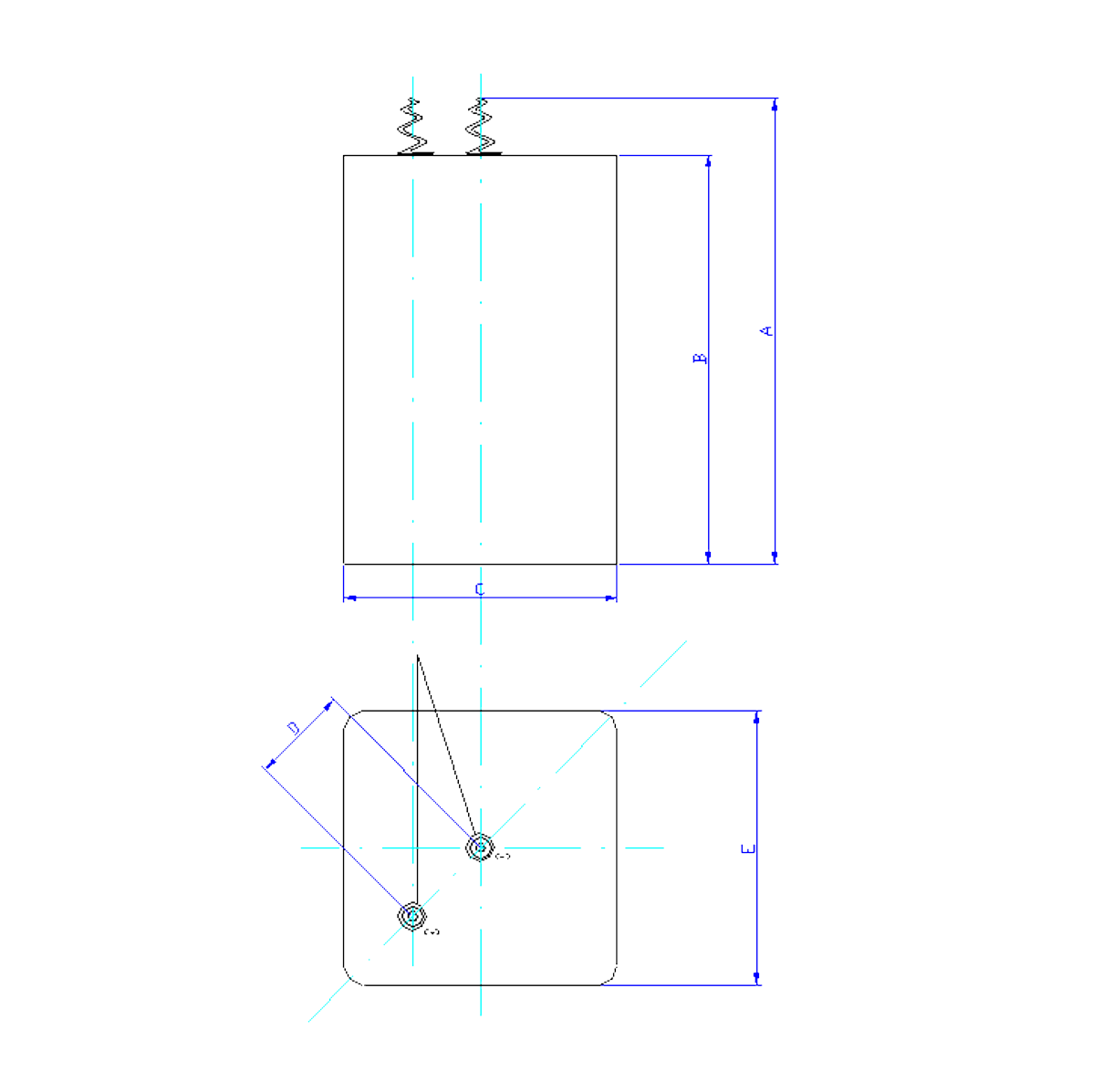

Drawing：Unit:mm
